PD10

Silver Plated Shield HEXA Audio Circuit Structure

The PD10 employs four AK4498EX DACs incorporated in an innovative HEXA audio circuit design with two separately applied AK4191EQs for processing digital signals, resulting in the creation of the finest sound.

The HEXA audio circuit is designed with a structure in which the AK4191EQ, a separate Digital delta-sigma modulator, reduces noise from the input digital signal, and then the AK4998EX, a completely isolated Analog DAC, processes only the analog signal separately.

By physically and perfectly separating digital and analog signal processing, The PD10 it delivers an astonishing level of sound that has never been experienced before.

Automatic Amplifier Matching Mode : Smart Gain

The PD10 instantly checks the impedance of the connected receiver upon plugging in your earphones or headphones and automatically sets the appropriate AMP.
Regardless of which earphones (headphones) are connected, the player automatically distinguishes between low and high impedance without cumbersome settings and matches the optimal AMP.
Earphones with an impedance of 32ohm or less are set to Normal Gain, providing a maximum output of 5.5Vrms in Balanced, and earphones exceeding 32ohm are set to High Gain, providing ample output of up to 8.3Vrms based in Balanced output.
The customized amplifier matching function (Smart Gain) provides audio enthusiasts who use a variety of earphones and headphones with a fresh listening experience.

Equipped with Impedance-Adaptive Dual Amplifiers

To cater to the diverse listening environments of our users, the PD10 is equipped with two distinct amplifiers.
Different sound tunings have been applied to each AMP, considering the average impedance of the connected earphones and headphones.
The Normal Gain AMP reproduces delicate details and high-purity sound quality, faithfully expressing the original sound.
The High Gain AMP specializes in handling complex and dynamic sounds, expressing audio signals more vividly and with greater clarity.
Enjoy a variety of sounds from a single player, according to your preference and the earphones and headphones you use.

Independent Dual Audio Circuits

To create an innovative DAP beyond the level of excellent DAPs, a DAP that no one has ever attempted, we aimed to overcome the limitations of sound by designing independent dual audio circuits for Unbalanced and Balanced outputs.
In most DAPs, Unbalanced and Balanced signals are used together in the internal DAC structure. Since the signal output from the DAC is divided into Unbalanced and Balanced signals and transmitted to the AMP, an Audio Switch is essential.

However, the Audio Switch has a limit to the range of signals it can receive from the DAC, so it first reduces the signal size and then transmits it to the amplifier to restore it to its original signal size, which creates limitations in improving audio performance. By creating two separate, independent audio circuits, one for balanced output and a second for unbalanced output, Astell&Kern maximizes audio performance no matter what output is being used.

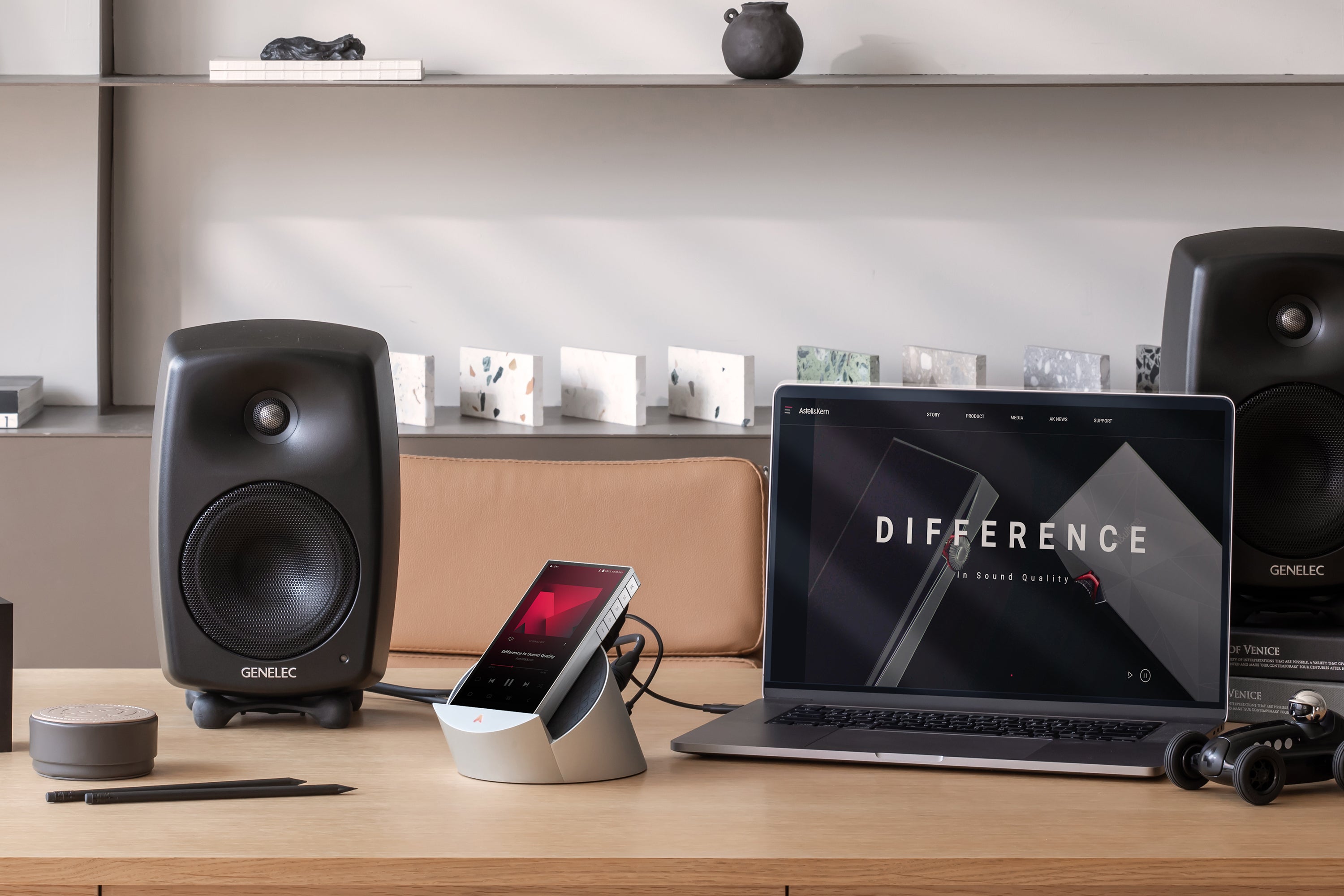

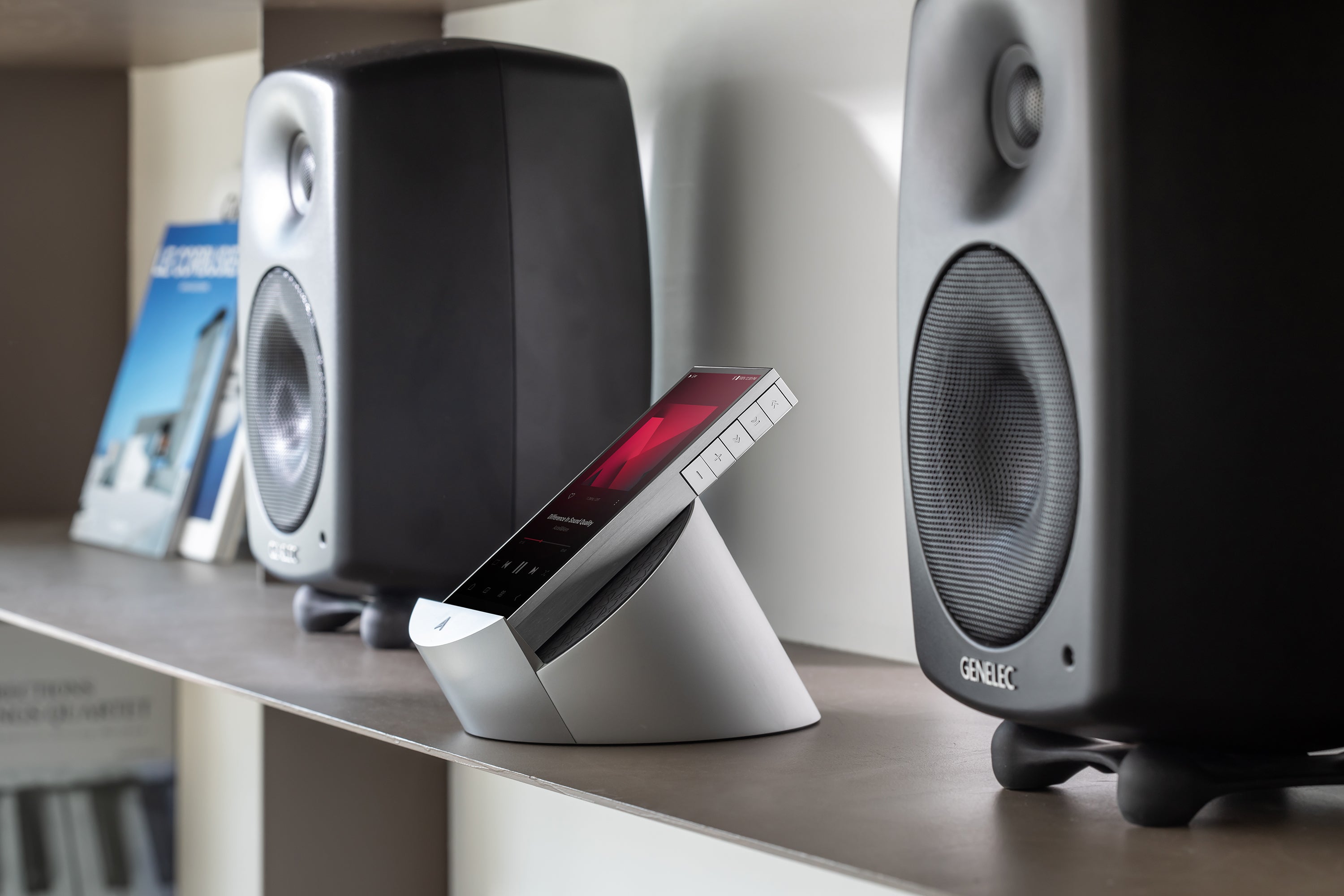

Docking Cradle for Home Audio Utilisation

The included cradle allows for use not only as a portable device but also as a home audio source.

When the PD10 is mounted on the cradle, it supports simultaneous device charging and digital input via the USB port. The XLR balanced analog outputs allow simple connection to a home audio system.
Enjoy Astell&Kern sound more conveniently at home with the cradle.

Supports AirPlay

Supports AirPlay for iPhone users,
allowing direct control while listening to music via AirPlay.

Equipped with a 5,770mAhHigh-Capacity Battery

The PD10 enables up to 15 hours of continuous playback with its optimized circuit configuration. Although the screen is larger and the performance is upgraded, you can enjoy music without worrying about battery life with the extended playback time.
