KANN ULTRA

Fueling Your Sound

Next-Generation Octa-Core processor brings significant performance improvements allowing you to enjoy incredible sound quality with faster system speeds and a smooth flowing 4th generation UI/UX.
Featuring the latest flagship DAC from ESS, the ES9039MPRO, delivers a richer, more expansive sound with advanced modulation for reduced power consumption, noise, and distortions, enhancing audio performance
Triple Output Mode to deliver natural, detailed sound when connected to demanding headphones, highly detailed IEMs and external devices.
Separate amplifier/sound design for the Headphone Out, Line Out and Pre-Out ports to provide the optimal sound for each
Digital Audio Remaster (DAR) technology, developed to deliver fine sound at higher sample rates. DAR technology upsamples the sample rate of the sound source being played to go beyond the limits of the source format.
A dedicated Pre-Out delivers sound through a specially designed Pre-Out amplifier, instead of the high-powered Headphone out amp, for optimal sound control
Exclusive Line Out mode outputs the sound directly from the DAC bypassing the amplifier, resulting in the lowest noise level, and making it ideal for connecting to external audio devices

£1,599.00

Quantity:

Ultra-powerful portable sound

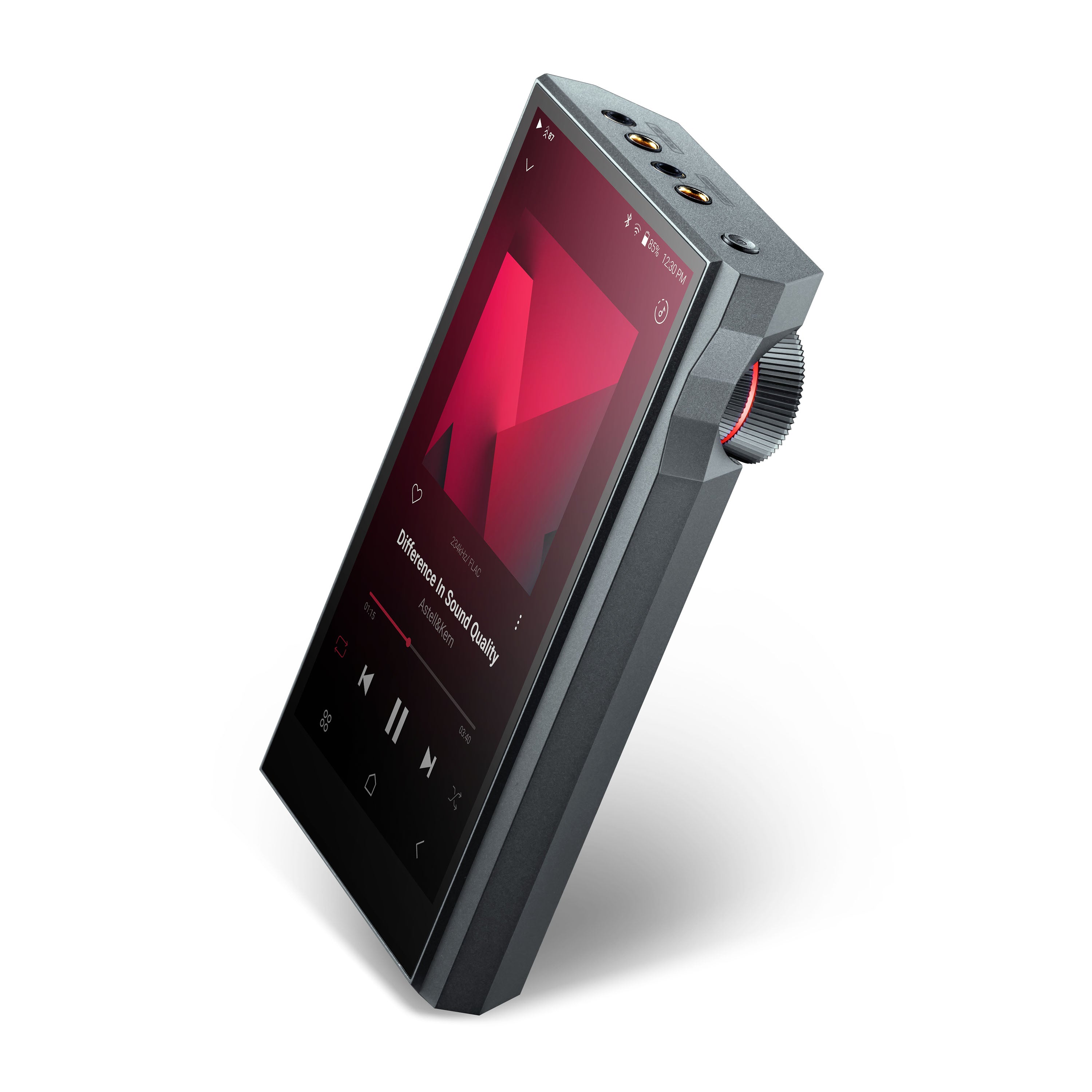

Introducing KANN ULTRA - The 5th player in the brand’s award-winning KANN series and its most powerful digital audio player to date. Featuring Octa-core processors, the KANN ULTRA reaches new sonic heights with DAR technology, an upgraded DAC and Triple Output while delivering the most seamless user experience possible.

Fueling Your Sound

The multi-award-winning global audio component pioneer from South Korea, has launched its most powerful digital audio player to date - the KANN ULTRA. The first player in the brand’s award-winning KANN series of players to feature Octa-core processors, the KANN Ultra reaches new sonic heights with DAR technology, an upgraded DAC and Triple Output while delivering the most seamless user experience possible.

Next-Generation Octa-Core Performance

The Astell&Kern KANN ULTRA is the first DAP in the renowned KANN series to feature Octa-Core processors, levelling up from Quad-Core in previous models. The Octa-Core element brings significant performance improvements allowing the listener to enjoy incredible sound quality with faster system speeds and a smooth flowing 4th generation UI/UX.
With the new internal design, the audio circuitry is separated from the processors – which include CPU, memory and wireless connection components – and is equipped with a dedicated shield to minimise heat and noise from the processor.

Upgraded Sound with Triple Output

Featuring a Triple Output Mode to deliver natural, detailed sound when connected to demanding headphones, highly detailed IEMs and external devices. Instead of simply separating the output ports, Astell&Kern's TERATON ALPHA technology allows for separate amplifier/sound design for the Headphone Out, Line Out and Pre-Out ports to provide the optimal sound for each.

Digital Audio Remaster (DAR)

KANN ULTRA is equipped with Digital Audio Remaster (DAR) technology, which was developed to deliver fine sound at higher sample rates. DAR technology is developed to upsample the sample rate of the sound source being played to go beyond the limits of the source format.

Flaship DAC

The KANN ULTRA is also designed with the newest flagship DAC from ESS to deliver a richer and more expansive sound than before. The ES9039MPRO has even more advanced modulation to reduce power consumption, noise and distortions for enhanced audio performance.

Included in the box

1x Astell&Kern KANN ULTRA player
1x USB-C to USB-C Cable
3x Screen protectors
1x Quick start guide
1x Warranty Card

General Specifications

Model

KANN ULTRA

Body Colour

Astro Grey

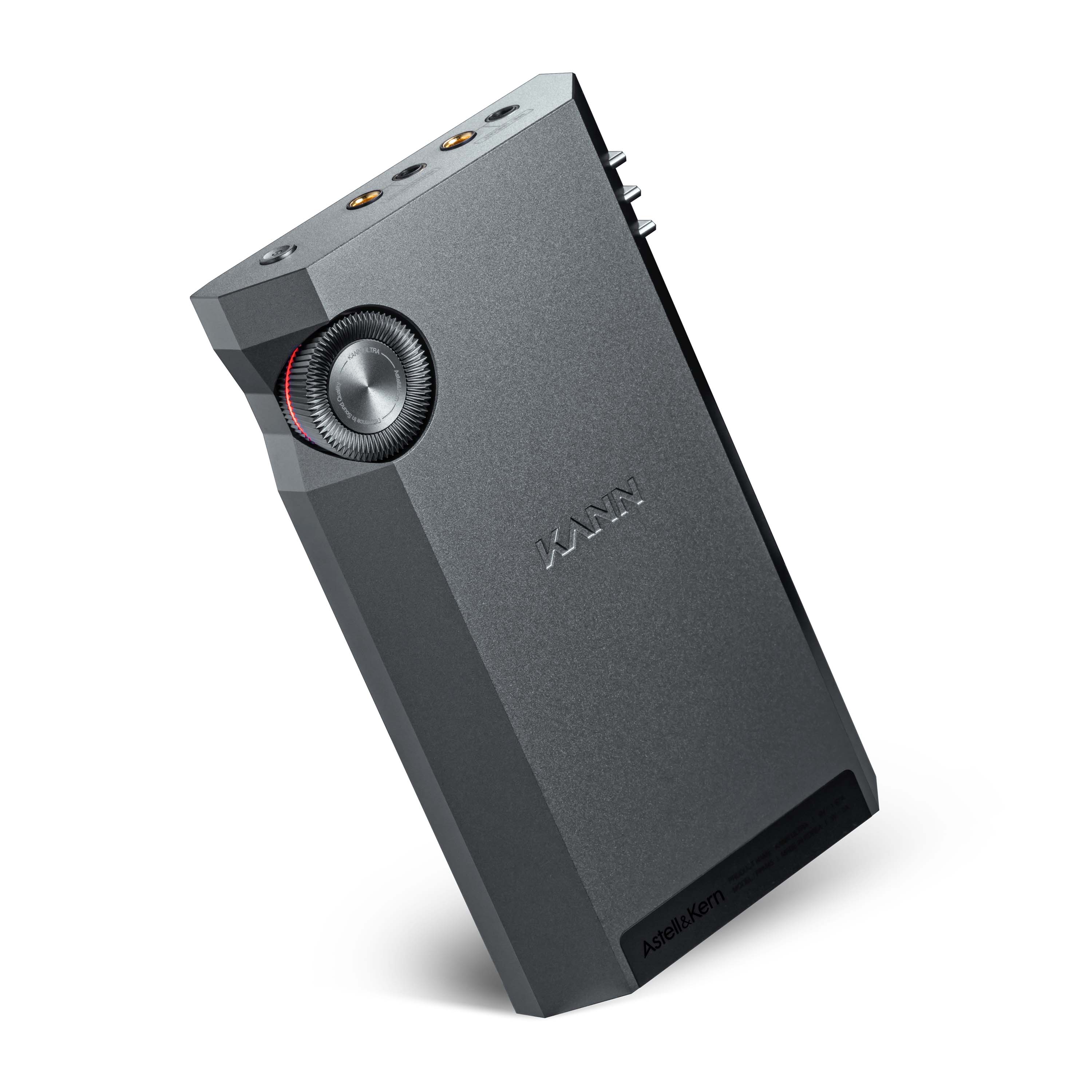

Body Material

Aluminium

Display

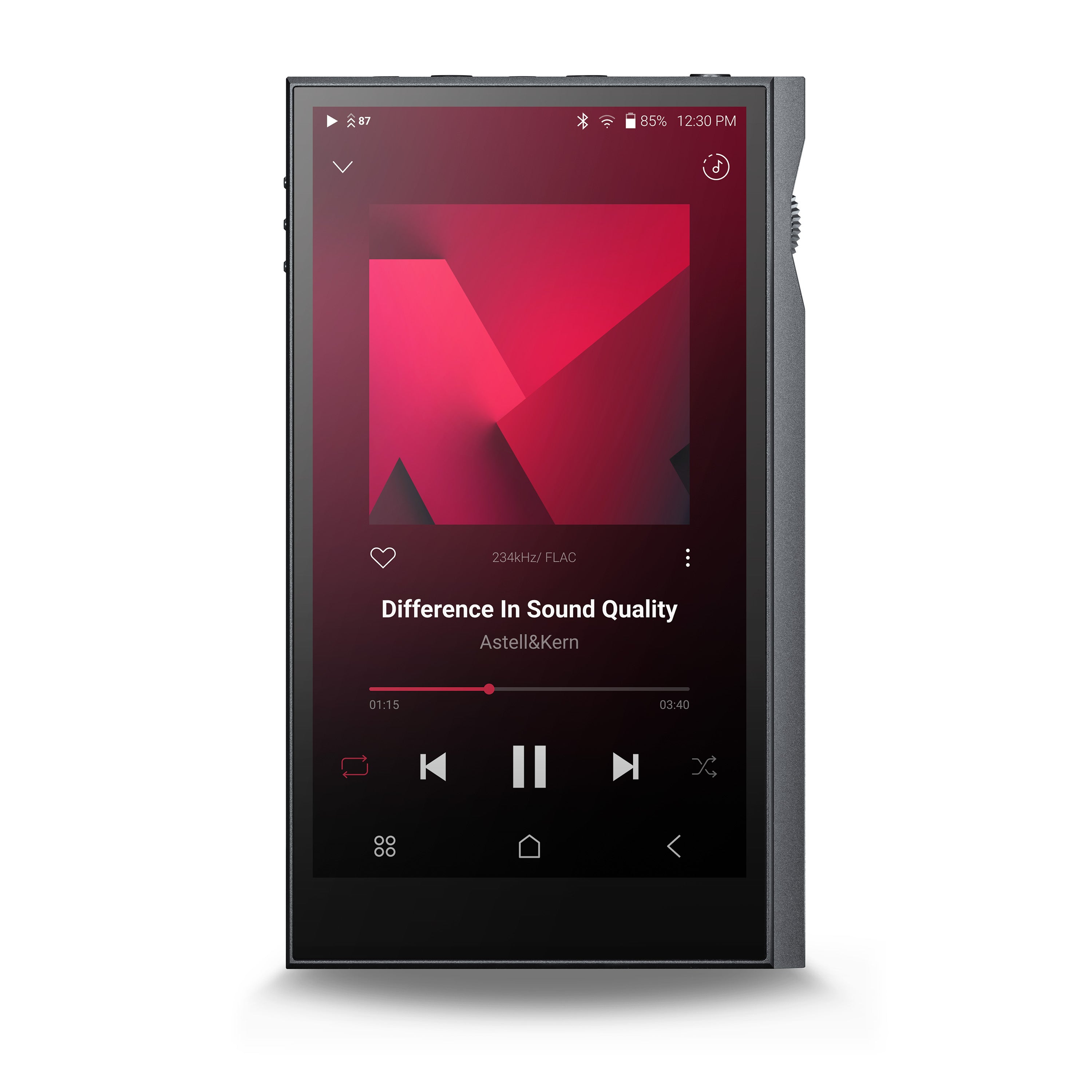

5.5inch HD 1080 x 1920 touch screen

Supported Audio Formats

WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA

Sample rate

PCM : 8kHz ~ 768kHz (8/16/24/32bits per Sample) DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo DSD256(1bit 11.2MHz), Stereo / DSD512(1bit 22.4MHz), Stereo

Output Level

HEADPHONE OUT [Low Gain] Unbalanced 2Vrms │ Balanced 4Vrms (Condition No [Mid Gain]Unbalanced 4Vrms │ Balanced 8Vrms (Condition No [High Gain]Unbalanced 6Vrms │ Balanced 12Vrms (Condition No [Super Gain]Unbalanced 8Vrms │ Balanced 16Vrms (Condition No PRE · LINE OUT Unbalanced 2Vrms │ Balanced 4Vrms (Condition No Load)

CPU

Octa-core

DAC

ES9039MPRO x2

Decoding

Support up to 32bit/768kHz Bit-to-Bit Playback

Input

USB Type-C input (for charging & PC & MAC)

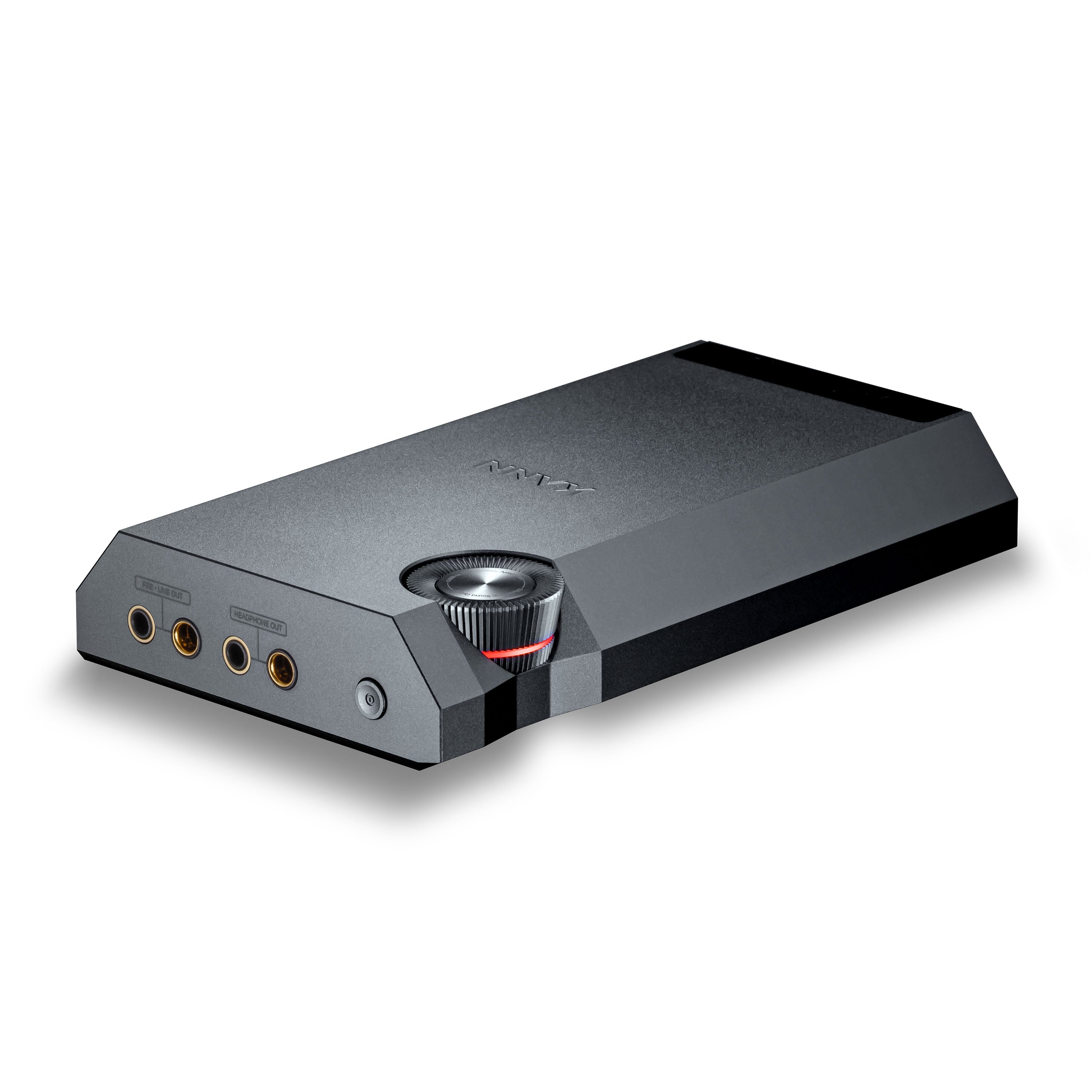

Outputs

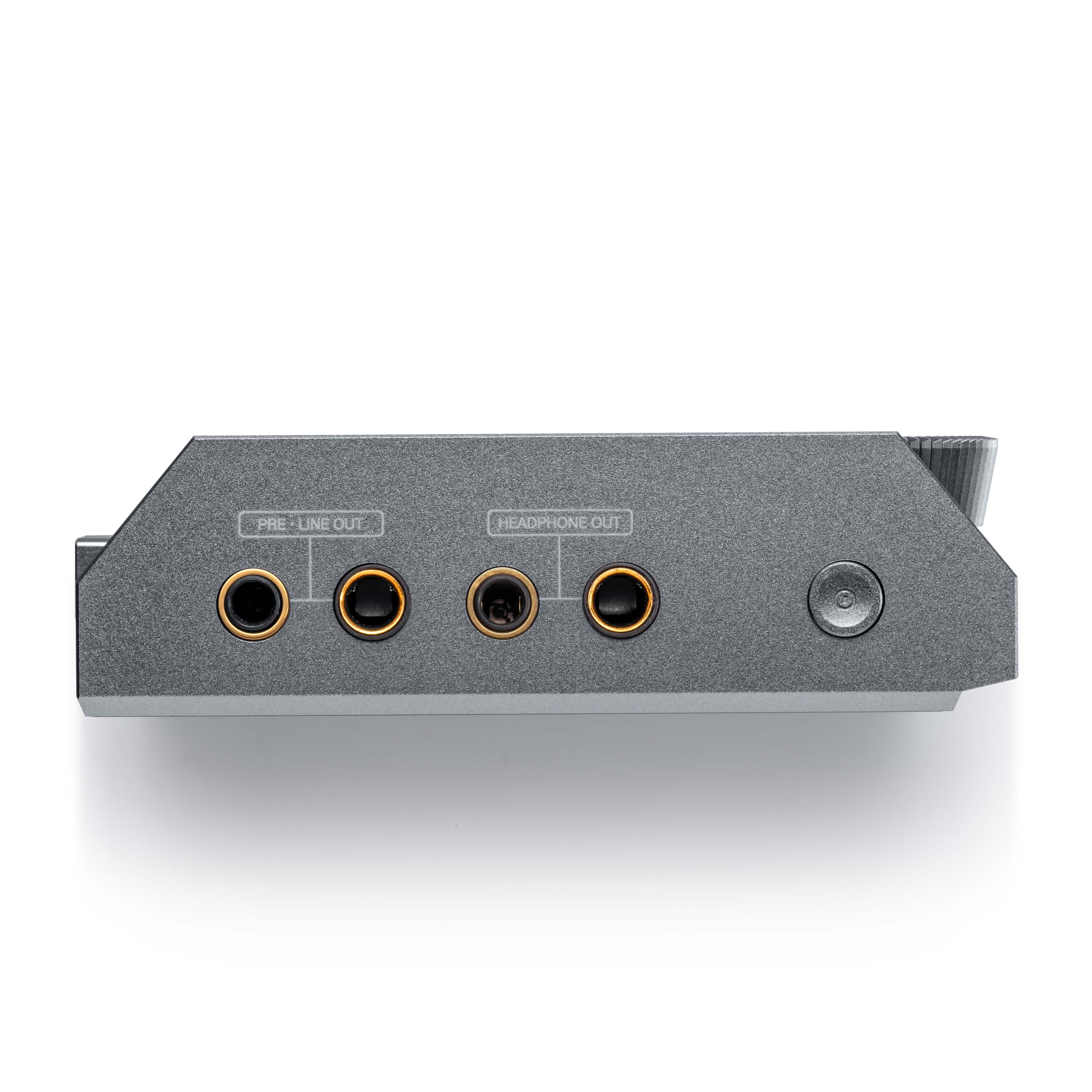

HEADPHONE OUT 3.5mm(Unbalanced Out, Optical Out), 4.4mm (Balanced Out, only 5 5-pole supported) PRE · LINE OUT 3.5mm(Unbalanced Out), 4.4mm (Balanced Out, only 5 5-pole supported)

Wi-Fi

802.11 a/b/g/n/ac (2.4&5GHz)

Bluetooth

V4.2 (A2DP, AVRCP, Qualcomm® aptX™-HD, LDAC)

Dimensions

3.24” (82.4mm)[W] x 5.55” (141.1mm)[H] x 0.96” (24.4mm)[D]

Weight

About 13.75oz (390g)

Firmware upgrade supported

(OTA)

Operating Temperature

0℃ ~ + 40℃ (32℉~ 104℉)

Audio Performance

Frequency Response

±0.012dB (Condition : 20Hz~20kHz) Unbalanced │ ±0.011dB (Condition : 20Hz~20kHz) Balanced
±0.125dB (Condition : 20Hz~70kHz) Unbalanced │ ±0.126dB (Condition : 20Hz~70kHz) Balanced

±0.022dB (Condition : 20Hz~20kHz) Unbalanced │ 0.023dB (Condition : 20Hz~20kHz) Balanced
±0.023dB (Condition : 20Hz~70kHz) Unbalanced │ 0.023dB (Condition : 20Hz~70kHz) Balanced

±0.002dB (Condition : 20Hz~20kHz) Unbalanced │ 0.002dB (Condition : 20Hz~20kHz) Balanced
±0.007dB (Condition : 20Hz~70kHz) Unbalanced │ 0.006dB (Condition : 20Hz~70kHz) Balanced

S/N

115dB @ 1kHz, Unbalanced │ 119dB @ 1kHz, Balanced

110dB @ 1kHz, Unbalanced │ 126dB @ 1kHz, Balanced

110dB @ 1kHz, Unbalanced │ 125dB @ 1kHz, Balanced

Crosstalk

134dB @ 1kHz, Unbalanced │ 140dB @ 1kHz, Balanced

128dB @ 1kHz, Unbalanced │ 128dB @ 1kHz, Balanced

129dB @ 1kHz, Unbalanced │ 121dB @ 1kHz, Balanced

THD+N

0.0004% @ 1kHz, Unbalanced │ 0.0004% @ 1kHz, Balanced

0.0012% @ 1kHz, Unbalanced │ 0.0005% @ 1kHz, Balanced

0.0013% @ 1kHz, Unbalanced │ 0.0005% @ 1kHz, Balanced

IMD SMPTE

0.0006% 800Hz 10kHz (4:1) Unbalanced │0.0006% 800Hz 10kHz (4:1) Balanced

0.0006% 800Hz 10kHz (4:1) Unbalanced │0.0006% 800Hz 10kHz (4:1) Balanced

0.0006% 800Hz 10kHz (4:1) Unbalanced │0.0006% 800Hz 10kHz (4:1) Balanced

Output Impedance

Unbalanced Out 3.5mm (1ohm) │ Balanced Out 4.4mm (1.3ohm)

Unbalanced Out 3.5mm (3.5ohm) │ Balanced Out 4.4mm (5.7ohm)

Unbalanced Out 3.5mm (6.5ohm) │ Balanced Out 4.4mm (10.7ohm)

Clock Source

Clock Jitter

25pS (Typ)

Reference Clock Jitter

200 Femto Seconds

Storage Capactiy

Built-in Memory

128GB [NAND]

External Memory

microSD x1 (Max. 1TB)

Battery

Capacity

8,400mAh 3.8V Li-Polymer

Charge Time

about 3.5hours (PD 3.0 Charger)

Playback Time

about 11hours (Standard: FLAC, 16bit, 44.1kHz, Vol.50, LCD Off, Low Gain)

Supported OS

Windows 10, 11(32/64bit) MAC OS X 10.7
